What is a Metamaterial, and Why Should You Care?

Why I’m Writing This

#

Between 2017 and 2018, I started a PhD candidature in acoustic metamaterials at the University of Adelaide. The research focus was nonlinear acoustic metamaterials with chaotic spring responses for low-frequency sound suppression. It ended at the 12-month review, a combination of inadequate supervision, gaps in my own mathematical background, and a research environment that didn’t quite set me up for success. I left feeling frustrated and, honestly, a bit defeated.

But the topic never really left me. The questions I was trying to answer back then, about how nonlinearity and chaos might be harnessed to attenuate sound in ways linear systems can’t, are still fascinating. So when I started exploring what modern AI tools are capable of, it got me thinking: what would it look like to revisit this research with an AI agent alongside me? This series is my attempt to find out.

So: what are these things I spent a year trying to understand?

Something Weird Is Possible

#

Imagine you could make a wall that, instead of reflecting or absorbing sound, bends it around an object, the acoustic equivalent of an invisibility cloak. Sound waves flow around whatever you’re hiding, reunite on the other side, and continue as if nothing was there. To a listener, the object simply doesn’t exist.

This is a demonstrated physical phenomenon made possible by a class of materials called acoustic metamaterials, and the physics behind it is strange, elegant, and deeply practical.

You probably care about this for one of a few reasons: vibration is destroying your engineering project, noise is killing your product, or you stumbled onto a paper that mentioned “negative mass” and had to know what that meant. All good reasons. This series exists to answer them.

So What Actually Is a Metamaterial?

#

A metamaterial is an artificially structured material whose properties come primarily from its geometry rather than its chemistry.

In a conventional material (steel, rubber, air), the physical properties (density, stiffness, how it responds to waves) emerge from the atoms it’s made of and how they bond. You want a stiffer material? Use a different alloy. You want better sound absorption? Use a porous foam. You’re always working with what nature gave you.

A metamaterial breaks that constraint. The structure is the material. By designing repeating geometric patterns (internal resonators, layered arrays, carefully tuned gaps) you can engineer effective properties that go well beyond what any natural material offers. Including, famously, properties that are negative.

To put it more precisely: metamaterials are engineered periodic or structured composites whose effective material parameters (density, bulk modulus, refractive index) derive from structural resonance rather than chemical composition, and can take values not found in nature, including negative values.

This isn’t magic. It’s resonance physics working on a scale much smaller than the wavelengths of the waves you’re trying to manipulate. We’ll get into exactly why in later posts. For now, the key word is “engineered.”

Natural vs Engineered: What Changes When You Design on Purpose?

#

Consider how nature builds things. A bird’s bone is strong and light because millions of years of evolution selected for a specific internal lattice structure. A nautilus shell distributes stress beautifully because of its logarithmic spiral geometry. These structures do remarkable things, but they’re constrained by what’s biologically achievable and what evolution needed.

When engineers design intentionally at the sub-wavelength scale, the constraints change fundamentally:

• You choose the geometry. Resonators, masses, springs, cavities: you place them where physics demands.
• You tune the response. Change the dimensions and you change the frequency at which your material becomes interesting.
• You’re not limited to positive values. This is the strange one, and it’s worth dwelling on.

In everyday life, density and stiffness are always positive. Of course they are: you can’t have less than no mass, and a material that expands when you compress it sounds absurd. But these are effective properties, macroscopic descriptions of how a material responds to a wave. And at certain frequencies, engineered structures can respond to waves in ways that look exactly like negative mass or negative stiffness, even though no individual component has those properties.

The game-changer was a 2000 paper in Science by Liu and colleagues, who demonstrated that a simple composite (lead spheres coated in soft silicone rubber, embedded in epoxy) could block sound at frequencies two orders of magnitude below what you’d predict from the material’s weight and stiffness alone. That shouldn’t work by conventional acoustics, but it did, because of local resonance. The structure resonated in a way that created, effectively, a material with negative mass density at certain frequencies. We’ll unpack exactly how in Post 3.

Negative Effective Mass: What Does That Even Mean?

#

This is the concept that trips people up most often, so it’s worth unpacking carefully.

Consider a simple mass on a spring. If you push the mass slowly, below the spring’s resonant frequency, it moves in the direction you push it. But push it at or above the resonant frequency and something odd happens: the mass moves opposite to the force you’re applying, lagging behind, driven by the spring dynamics.

Now imagine that mass-spring system is inside a larger structure, and you’re observing the whole thing from outside. You see an external force applied, and you see the outer structure moving in the opposite direction. If you tried to describe this bulk behaviour with a simple F=ma relationship, you’d calculate a negative effective mass. The mass isn’t actually negative; it’s that the internal resonance reverses the observable motion.

This is what acoustic metamaterials exploit. Build the right internal resonator geometry, operate near its resonant frequency, and you can make a bulk material exhibit:

• Negative effective mass density: the structure accelerates opposite to the applied force
• Negative effective bulk modulus: the structure expands when compressed
• Both simultaneously: which is when truly exotic wave behaviour (like near-perfect sound transmission through a normally-opaque barrier) becomes possible

A material with both simultaneously negative actually transmits waves, while a single negative value reflects or evanescently attenuates them. That combination is the key to phenomena like acoustic cloaking.

Real Applications: This Isn’t All Theoretical

#

The conceptual weirdness matters because it unlocks things that conventional materials engineering can’t deliver:

Acoustic cloaking: Structures designed to guide sound waves around an object rather than reflecting them. Demonstrated in water by researchers at Duke University (Cummer and Schurig, ~2007, in a close analogue of electromagnetic cloaking), where the sound propagates as though the object isn’t there.

Vibration isolation: Locally resonant metamaterials can create band gaps, frequency ranges where wave propagation is simply forbidden. Place one of these between a vibrating machine and a sensitive instrument, and vibrations at the target frequency are blocked far more effectively than any passive damping solution. Applications range from precision manufacturing equipment to earthquake-resistant foundations.

Ultrathin noise barriers: Traditional sound barriers work by being heavy (mass law: more mass per unit area, more transmission loss). Metamaterial panels can achieve equivalent or better transmission loss at a fraction of the weight, because they exploit resonance rather than mass. This matters enormously for aerospace, automotive, and architecture.

Medical ultrasound: Controlling how sound waves focus and propagate in tissue, with applications in non-invasive surgery and high-resolution imaging.

These aren’t all commercially mature; some are still firmly in the lab. But they’re all demonstrated in principle, and the engineering path from principle to product is increasingly clear.

A Glimpse of What’s Coming: The Spring-Mass Analogy

#

Everything described above, band gaps, negative effective properties, resonance-driven attenuation, can be understood starting from a deceptively simple model: a chain of masses connected by springs.

If all the masses and springs are identical, this system propagates waves across a well-defined frequency range and blocks them above a certain cutoff. Add a secondary resonator to each mass (a mass-on-a-spring attached to each mass in the chain), and something remarkable happens: a new forbidden band appears, centred on the resonant frequency of those secondary oscillators. In essence, this is a metamaterial at its simplest, built entirely from high school physics components.

Posts 2 and 3 derive the wave equation from scratch and show exactly how the spring-mass-damper chain produces band gap behaviour, with Python simulations you can run and modify yourself. By the end of Post 3, you’ll be able to predict where a band gap appears just by looking at the mass and spring constants.

🔬 Jupyter Notebook: Post 1 | Wave Propagation in 1D Spring-Mass Chains

#

What this notebook explores:
A 1D chain of masses connected by springs, simulated in two configurations:

1. Periodic (uniform) chain: all masses and spring constants identical. Shows clean wave propagation up to a cutoff frequency, then evanescent decay.
2. Disordered (random) chain: masses or springs varied randomly. Shows how disorder scatters waves and breaks clean propagation, as a contrast to the deliberate, useful structure in a metamaterial.

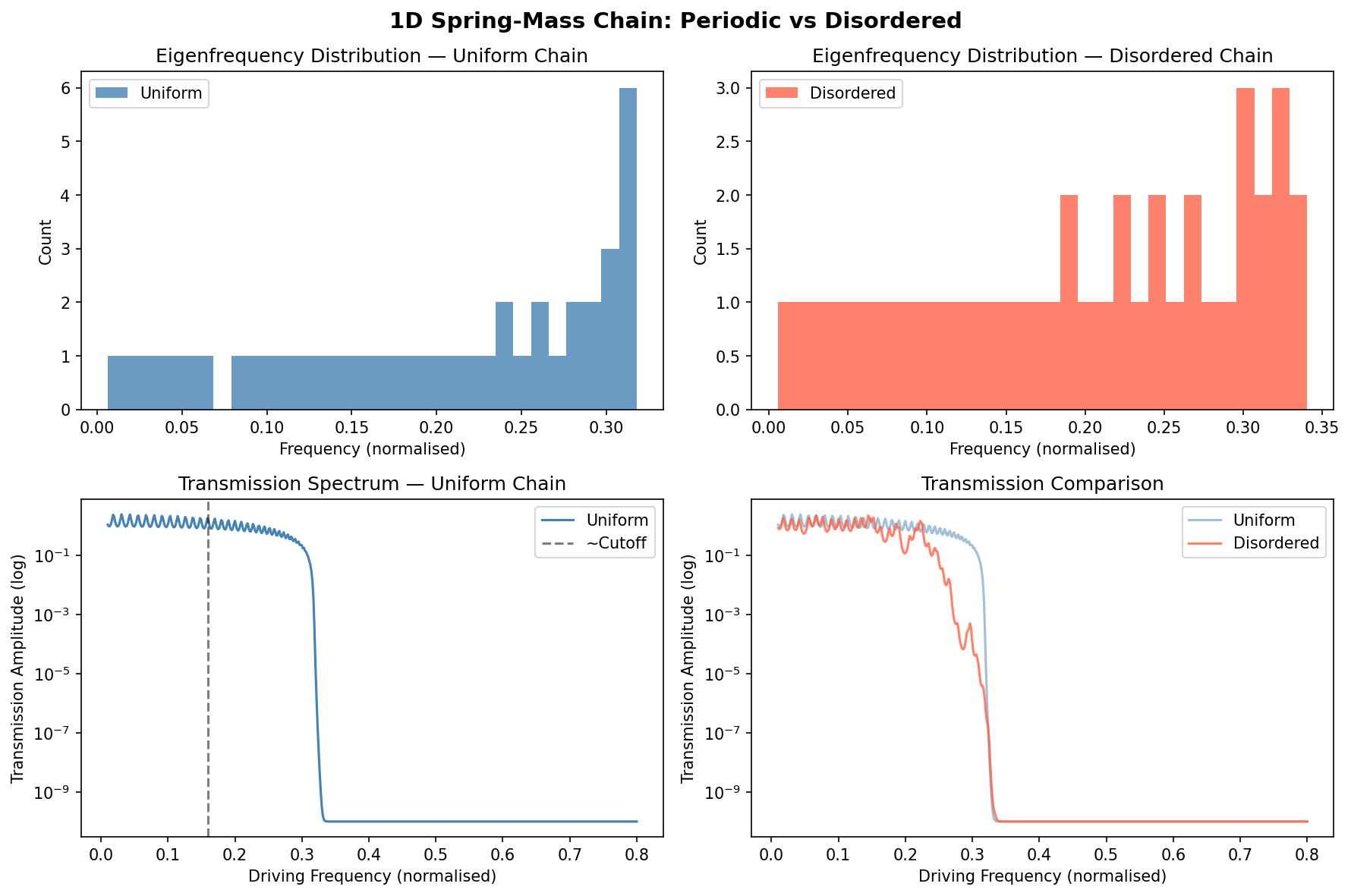

What the plots show:

• Displacement amplitude along the chain vs time (animated or snapshotted)
• Frequency response: transmission as a function of driving frequency
• The emergence of a passband and a stopband in the periodic case
• Comparison of transmission spectra: periodic vs random

Together these plots build visual intuition for why designed periodicity is different from random structure, setting up the band gap concept formalised in Post 4.

"""
Post 1 Companion: 1D Spring-Mass Chain Simulation
==================================================
Simulates wave propagation in:
  - Uniform (periodic) spring-mass chains
  - Disordered (random) spring-mass chains

Requirements: numpy, scipy, matplotlib
Install: pip install numpy scipy matplotlib
"""

import numpy as np
import matplotlib.pyplot as plt
from scipy.linalg import eigh

# ─── Parameters ─────────────────────────────────────────────────────────────

N = 40          # Number of masses in the chain
m_base = 1.0    # Base mass (kg)
k_base = 1.0    # Base spring constant (N/m)
disorder = 0.3  # Fractional disorder (0 = perfectly uniform)

# ─── Build mass and stiffness matrices ──────────────────────────────────────

def build_matrices(N, masses, springs):
    """
    Build mass matrix M and stiffness matrix K for a 1D chain.
    Fixed boundary conditions at both ends.
    """
    M = np.diag(masses)

    K = np.zeros((N, N))
    for i in range(N):
        K[i, i] += springs[i]
        if i > 0:
            K[i, i] += springs[i - 1]
            K[i, i - 1] -= springs[i - 1]
            K[i - 1, i] -= springs[i - 1]
    return M, K


def uniform_chain(N, m, k):
    masses = np.full(N, m)
    springs = np.full(N + 1, k)   # N+1 springs for N masses (walls included)
    return masses, springs


def disordered_chain(N, m, k, disorder_frac, seed=42):
    rng = np.random.default_rng(seed)
    masses = m * (1.0 + disorder_frac * rng.uniform(-1, 1, N))
    springs = k * (1.0 + disorder_frac * rng.uniform(-1, 1, N + 1))
    return masses, springs


# ─── Compute eigenfrequencies ────────────────────────────────────────────────

def get_frequencies(N, masses, springs):
    M, K = build_matrices(N, masses, springs)
    # Solve generalised eigenvalue problem: K v = ω² M v
    eigenvalues, eigenvectors = eigh(K, M)
    eigenvalues = np.maximum(eigenvalues, 0)   # numerical safety
    freqs = np.sqrt(eigenvalues) / (2 * np.pi)
    return freqs, eigenvectors


# ─── Frequency response (driven chain) ──────────────────────────────────────

def frequency_response(N, masses, springs, freq_range, drive_node=0, measure_node=-1):
    """
    Drive the chain at drive_node with unit force.
    Measure steady-state amplitude at measure_node.
    Returns transmission (amplitude ratio) across freq_range.
    """
    M, K = build_matrices(N, masses, springs)
    damping = 0.02  # Small damping for finite peaks

    transmission = []
    for f in freq_range:
        omega = 2 * np.pi * f
        # Dynamic stiffness matrix: Z = K - omega^2 * M + i * damping * omega * M
        Z = K - omega**2 * M + 1j * damping * omega * M
        F = np.zeros(N, dtype=complex)
        F[drive_node] = 1.0
        try:
            u = np.linalg.solve(Z, F)
            transmission.append(np.abs(u[measure_node]))
        except np.linalg.LinAlgError:
            transmission.append(0.0)

    return np.array(transmission)


# ─── Main: plot and compare ──────────────────────────────────────────────────

def main():
    freq_range = np.linspace(0.01, 0.8, 500)

    # Build chains
    m_uniform, k_uniform = uniform_chain(N, m_base, k_base)
    m_disordered, k_disordered = disordered_chain(N, m_base, k_base, disorder)

    # Frequency responses
    T_uniform = frequency_response(N, m_uniform, k_uniform, freq_range)
    T_disordered = frequency_response(N, m_disordered, k_disordered, freq_range)

    # Eigenfrequencies
    freqs_uniform, _ = get_frequencies(N, m_uniform, k_uniform)
    freqs_disordered, _ = get_frequencies(N, m_disordered, k_disordered)

    # ─── Plotting ────────────────────────────────────────────────────────────

    fig, axes = plt.subplots(2, 2, figsize=(12, 8))
    fig.suptitle("1D Spring-Mass Chain: Periodic vs Disordered", fontsize=14, fontweight='bold')

    # Plot 1: Eigenfrequencies (density of states)
    axes[0, 0].hist(freqs_uniform, bins=30, color='steelblue', alpha=0.8, label='Uniform')
    axes[0, 0].set_title("Eigenfrequency Distribution — Uniform Chain")
    axes[0, 0].set_xlabel("Frequency (normalised)")
    axes[0, 0].set_ylabel("Count")
    axes[0, 0].legend()

    axes[0, 1].hist(freqs_disordered, bins=30, color='tomato', alpha=0.8, label='Disordered')
    axes[0, 1].set_title("Eigenfrequency Distribution — Disordered Chain")
    axes[0, 1].set_xlabel("Frequency (normalised)")
    axes[0, 1].set_ylabel("Count")
    axes[0, 1].legend()

    # Plot 2: Transmission spectrum
    axes[1, 0].semilogy(freq_range, T_uniform + 1e-10, color='steelblue', label='Uniform')
    axes[1, 0].set_title("Transmission Spectrum — Uniform Chain")
    axes[1, 0].set_xlabel("Driving Frequency (normalised)")
    axes[1, 0].set_ylabel("Transmission Amplitude (log)")
    axes[1, 0].axvline(x=k_base**0.5 / np.pi * 0.5, color='k', linestyle='--', alpha=0.5, label='~Cutoff')
    axes[1, 0].legend()

    axes[1, 1].semilogy(freq_range, T_uniform + 1e-10, color='steelblue', alpha=0.5, label='Uniform')
    axes[1, 1].semilogy(freq_range, T_disordered + 1e-10, color='tomato', alpha=0.8, label='Disordered')
    axes[1, 1].set_title("Transmission Comparison")
    axes[1, 1].set_xlabel("Driving Frequency (normalised)")
    axes[1, 1].set_ylabel("Transmission Amplitude (log)")
    axes[1, 1].legend()

    plt.tight_layout()
    plt.savefig("spring_mass_chain.png", dpi=150, bbox_inches='tight')
    plt.show()
    print("Saved: spring_mass_chain.png")


if __name__ == "__main__":
    main()

📐 A quick note on eigenvectors: The simulation uses scipy.linalg.eigh to solve a generalised eigenvalue problem. The eigenvalues give you the squared natural frequencies, the frequencies at which the chain “wants” to vibrate. The eigenvectors are the corresponding mode shapes: patterns describing how each mass moves relative to the others at each natural frequency. In this post they’re mostly a means to an end (we use them to compute the frequency distribution), but by Post 3 they’ll become central to understanding how metamaterials create band gaps, so it’s worth knowing what they represent.

To run: Copy into a .py file or Jupyter notebook and run. Install dependencies with pip install numpy scipy matplotlib. The simulation will output four plots: eigenfrequency distributions for both chain types, and transmission spectra, both individually and overlaid for comparison.

What to look for: In the uniform chain, there’s a clear cutoff frequency above which transmission drops sharply, marking the beginning of a stop band. In the disordered chain, the spectrum is messier, with transmission attenuated across a broader range but without the clean structure. This contrast is central to the metamaterial intuition: designed periodicity creates designed stop bands, while disorder produces only noise.

What This Series Covers

#

The full roadmap is below:

The series builds deliberately. Posts 1–3 are accessible to anyone with a physics or engineering background, while Posts 4–6 get progressively more mathematical, culminating in the frontier research territory where I’m trying to make a contribution. Each post has a companion Jupyter notebook.

If you already know acoustics and want to skip ahead, Post 4 is probably where things stop being review for you. If you’re coming in completely fresh, Posts 1–3 will give you everything you need.

References

#

1. Liu, Z., Zhang, X., Mao, Y., Zhu, Y. Y., Yang, Z., Chan, C. T., & Sheng, P. (2000). Locally resonant sonic materials. Science, 289(5485), 1734–1736. DOI: 10.1126/science.289.5485.1734 (Seminal paper demonstrating local resonance as the mechanism for sub-wavelength band gaps; the founding result of locally resonant acoustic metamaterials.)

2. Hussein, M. I., Leamy, M. J., & Ruzzene, M. (2014). Dynamics of phononic materials and structures: Historical origins, recent progress, and future outlook. Applied Mechanics Reviews, 66(4), 040802. DOI: 10.1115/1.4026911 (Comprehensive review of the field; excellent companion reading for the full series arc.)

3. Cummer, S. A., Christensen, J., & Alù, A. (2016). Controlling sound with acoustic metamaterials. Nature Reviews Materials, 1(3), 16001. DOI: 10.1038/natrevmats.2016.1 (More recent review covering applications including cloaking, focusing, and noise control; highly readable.)

Next post: The Wave Equation: Derivation and Physical Meaning →
